Viewer Configuration - Default Values

The Default Values panel allows you to configure them according to your criteria

     The Default Values tab is divided into three sections:

          - Range thematic,

          - Default colours,

          - Filters.

  Range thematic



     The following settings determine the defaults used when a new thematic analysis is created.

          - Default Calculation Method: Sets the default range calculation method from the following options.

          - Default Color Palette: Sets the default colour palette for ranges thematic analysis.

          - Default Overlay Color Palette: Sets the default colour palette for overlay symbol thematic analysis.

Default colours

          - Fill Pattern: Opens the Color Picker dialogue to define the default fill pattern colour, to learn more about the Color Picker, click here.

          - N/A Values: Opens the Color Picker dialogue to define the default N/A value colour, to learn more about the Color Picker, click here.

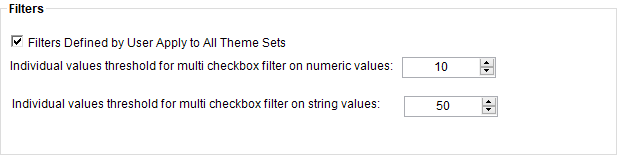

Filters

          - Filters Defined by User Apply to All Theme Sets: When enabled, the filters added by the user in the CartoVista Viewer will be kept when changing from one theme set to another. When disabled, any existing filters will be removed each time the user changes the theme set. Some theme sets may contain filters. These themes set some specific filters that are always applied when the theme set is loaded, overwriting the filters set by the user.

          - Individual values threshold for multi checkbox filter on numeric values: By default, logical expressions are used to filter values when there are more than 10 different values in numeric thematic data. You can change this threshold to filter by check box instead.

          - Individual values threshold for multi checkbox filter on string values: By default, logical expressions are used to filter values when there are more than 50 different values in a string thematic data. You can change this threshold to filter by check box instead.
